Spring WATER workshops at Eco-Sense


SORRY!  Workshops POSTPONED until later in the year
Three NEW WATER workshops at Eco-Sense now posted for Feb-March 2019:

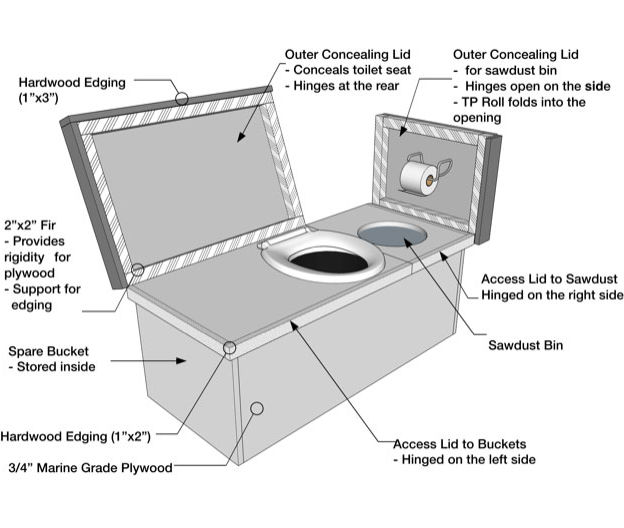

03c3a8_9e33325d05fb4751beb4d8f1f401acda~mv2Essential Composting ToiletsPOSTPONED
Responsible Water AlternativesPOSTPONED
Rain Water HarvestingPOSTPONED

Eco-Sense Eventbrite page is here.  Click on any link to register online.


Outside view of the MUD room @ Eco-Sense classroom

All workshops are small with only 12 people and are held in the MUD Room.  High quality screen for presentation.  See photos of MUD room here.

Also included in $90 course fee:

  • Short tour of the homestead – weather permitting.
  • Organic home made LUNCH with vegetarian and local meat options. Coffee and tea and lemon water (yes our own lemons).

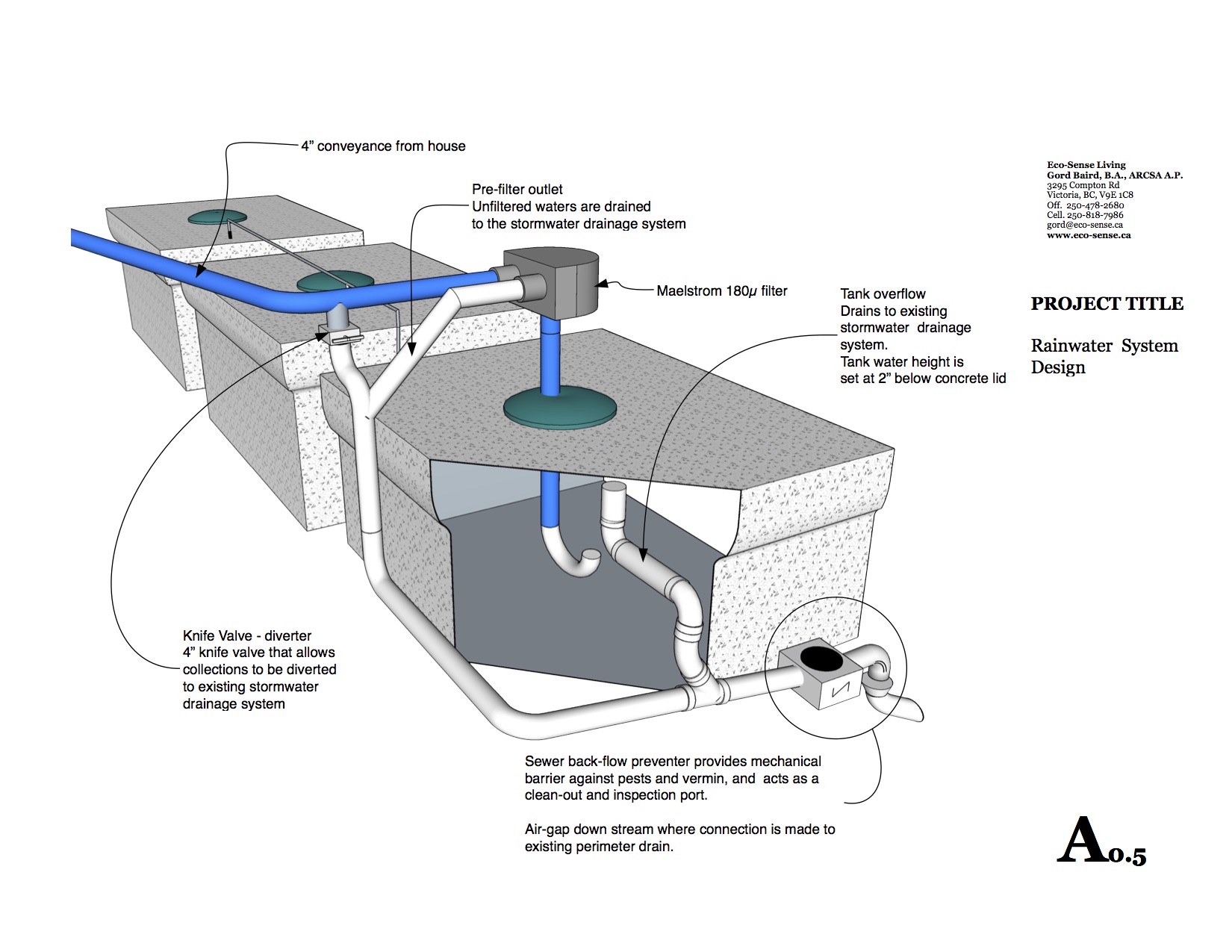

Design Example Drawing

In ground concrete tanks

About Gord:

  • Co-Author of the book “Essential Composting Toilets” published by New Society Publishers in Oct 2018
  • Technical editor for the Manual of Composting Toilets and Greywater Practice for the province of BC
  • Accredited Professional with the American Rain Catchment Systems Association (ARCSA)
  • Co-creator/builder of the award-winning Eco-Sense home; awarded Living Building Challenge petal recognition in 2010.
  • Councillor District of Highlands 2014-present
  • Sits as a Water commissiosoner on both the Juan de Fuca and CRD water commissions

Cover Image emailed

HOW to Buy our book:

  1. Buy this book dirrectly from the publisher using this link, and we will get a small commission.
  2. Buy from us at our workshops or speaking engagements (note that we do not ship our books)
  3. Buy from your local bookstore
  4. Buy online from Amazon
DSC03070

Inside the classroom with BIG screen TV for quality presentations.  Maximum group size of 12.





Rainwater and other dry topics


We recently have had a flow of interest in topics covering water collection, and water … dissemination.     So in the spirit of disseminating information on a topic that has wet a lot of interest here is a synopsis of useful info on rainwater harvesting, greywater and … you guessed it… composting toilets.

Rainwater

Two aspects here – policy and application.  Lets start with application. Why collect rainwater?

  • Irrigation of immediately local food.
  • Potable water source for areas that have contaminated groundwater or dried wells, or contaminated surface water sources.
  • Emergency water source in emergency and natural disasters, thus providing resiliency to the home owner and decreasing the stresses applied to emergency response teams to get water to the public.
  • Emergency source of water in the event of fires.
  • In cities it is a form of storm water management which can decrease the storm flood into city storm drains and sewers, and thus decrease the need for expensive upgrades and robust systems (saves tax dollars).
Dual tank with aeration, seasonal irrigation pumps, well top-up, and potable water emergency pump.  Summer irrigation runs through upper floor of the home cooling the house as its fills the tanks.

Dual tank with aeration, seasonal irrigation pumps, well top-up, and potable water emergency pump. Summer irrigation runs through upper floor of the home cooling the house as its fills the tanks.

Basics behind safe collection and storage;   Collect from a surface that will not add contaminants and avoid materials that will add PAHs, fire retardants, cadmium and lead (treated wood shingles, galvanized metal roofing, asphalt shingles).  Provide coarse filtering

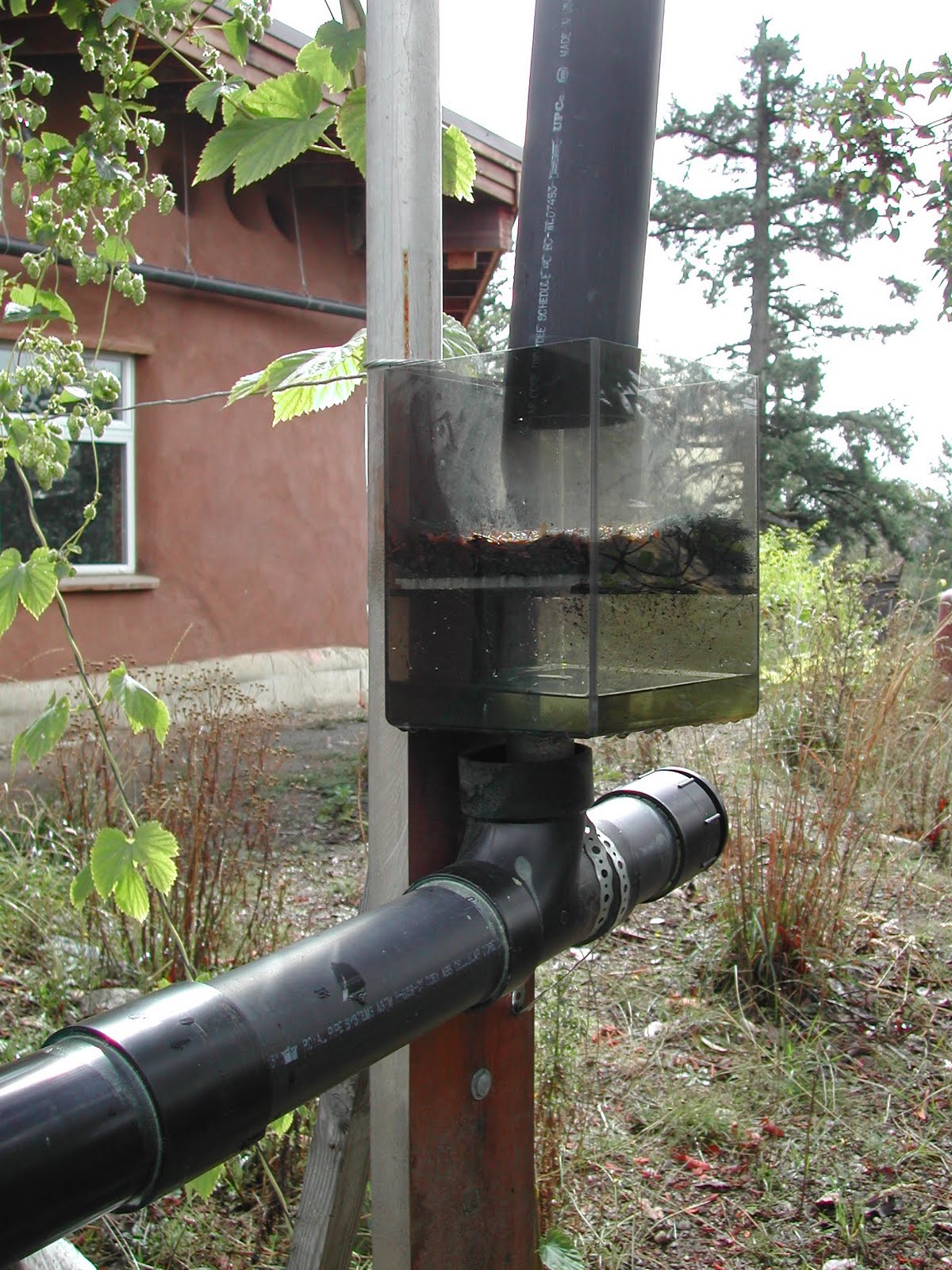

Coarse Debris filter

Coarse Debris filter

before storage via a debris filter and a first flush diverter.  Store it clean, don’t allow critter access to the tank, and design the overflow to match the inlet… match the inlet to the code requirements for the catchment area size.

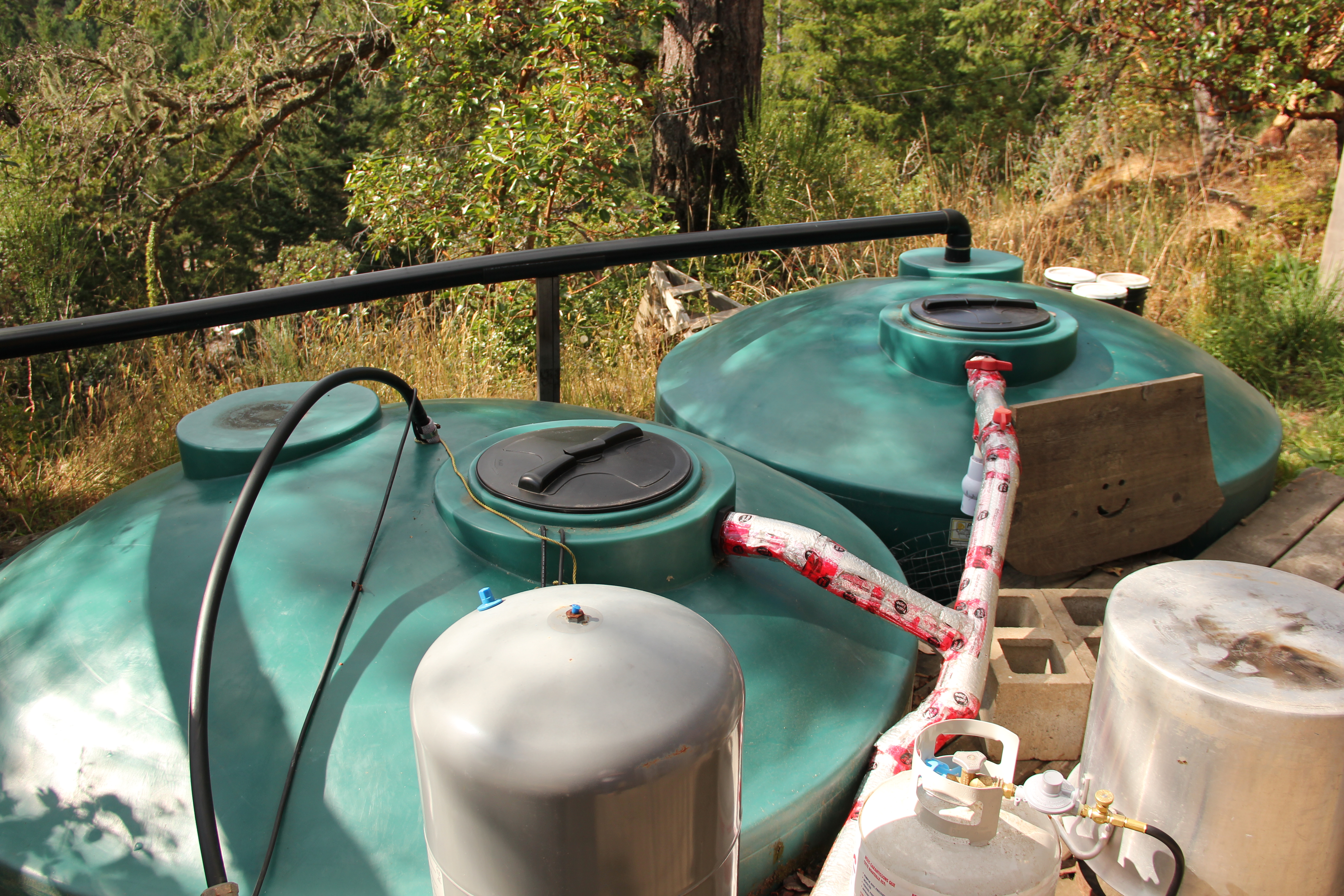

Tank with coarse and 1st flush filters.

Tank with coarse and 1st flush filters – Boat access only install – 40 minutes out of Tofino. Service contract allows me to Kayak in to service systems.

Sizing of storage is really dependant on the monies you have, the usage patterns and volumes (water budget), and space for storage.  I have a program I wrote to calculate all these items and help make the best choice… but ultimately storage is the biggest price tag of the non-potable system.  A potable system has additional expense in the form of filters and sterilizers that can come in many forms, from particle filtration and UV sterilization, to membrane filtration, and chemical sterilization (chlorine and peroxide systems).

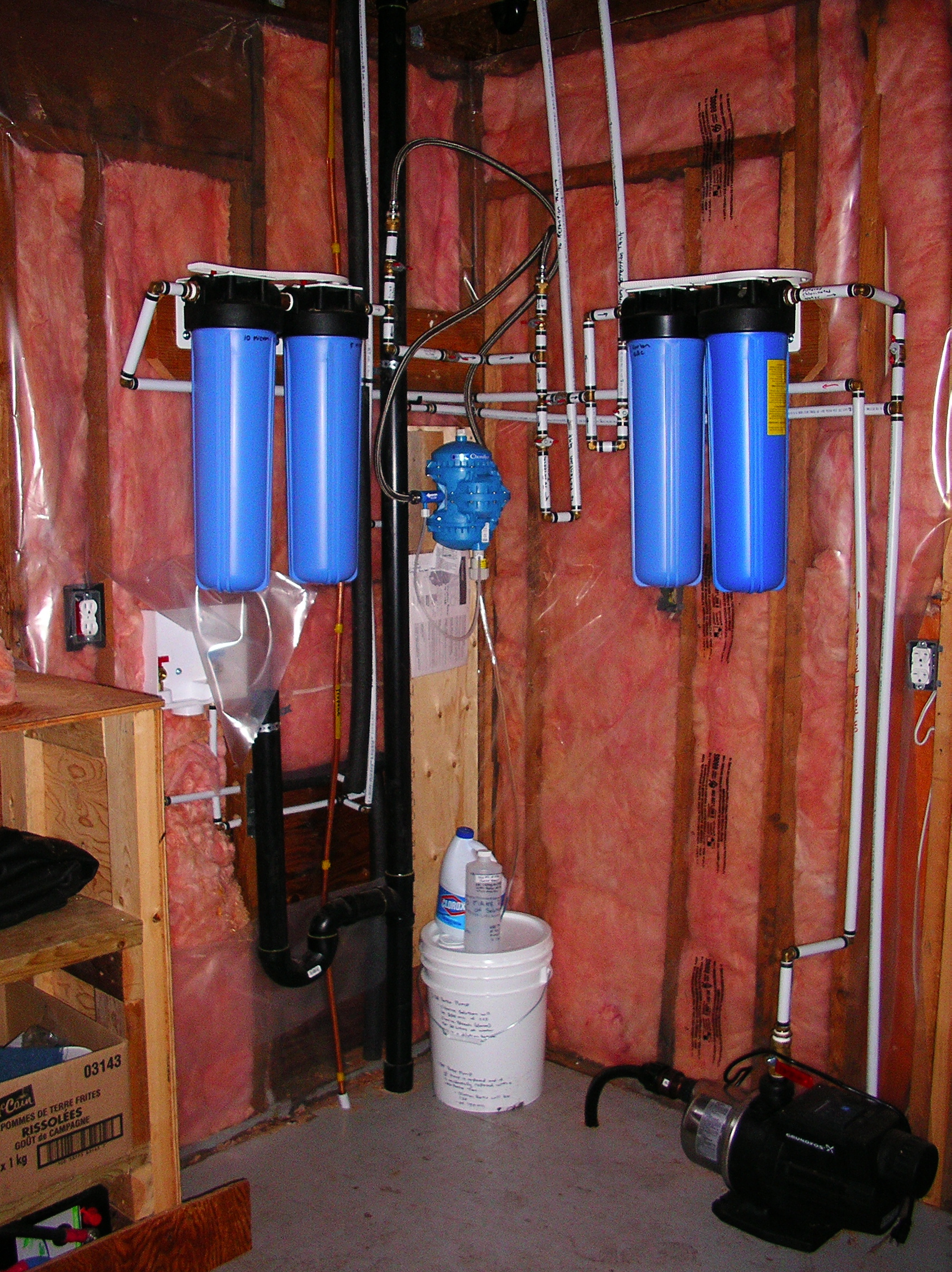

A solar powered home so we resorted to 5 micron filter, chlorination, 1 micron carbon and finished with a KDF55.

A solar powered home so we resorted to 5 micron filter, chlorination, 1 micron carbon and finished with a KDF55.

Pumping also has a list of variables, but the system I like is the one we use here at Eco-Sense, which is an in-tank submersible pump that turns on/off automatically thus not requiring a pressure tank or winterization.  Roughly this pump setup is $1000.

Policy – without policy officials cannot easily embrace installs, and lazy officials will drag their heels, while good officials whom have the spare time to learn will be supportive.  We recently had a person ask what they can do to help promote policy… below is an excerpt from that reply:

A comment supplied to a person on the mainland asking how they could approach their council on the issues of rainwater harvesting.

I would do the following: (using Rainwater as an example)
Write a letter addressed to Mayor and council
Start with introducing the topic and why it is important.

  • – aids in stormwater management
  • – provides a means of irrigation for immediately local food
  • – provides an emergency source of water in cases of emergency and natural disaster
  • – By having an emergency sources of water there is less strain on emergency services to provide water
  • – opportunity to allow potable water in areas where groundwater or waterbodies have become unsuitable for drinking

State why a policy is required, and what the absence of a policy means
With the RDN (Regional District of Nanaimo) as an example,

  • – policy has allowed officials to understand and accept thus allow implementation
  • – a lack of policy lends to too many unanswered questions and therefore reluctance to allow systems
  • – policy also ties directly to awareness and education
  • – Education lends to higher degrees of resource conservation
  • – it already has proffessional accreditation through Canada and the US (CANARM and ARCSA)

Ask council to make a motion to have staff move forward to investigate and present a Rainwater Harvesting Policy:
” I am requesting that Council give he topic of Rainwater Harvesting for potable and non-potable use attention in light of the issues we face and ones that will only become more pronounced with climate change, and ask that they motion staff to develop a policy to allow such”.

Ask council to promote this policy to the CRD (or whatever regional district) to create a regional policy.
“I also ask that council write a letter to the CRD (or whatever regional district) and request the same as a regional policy”
Asking direclty what you want is fine, as most councillors will not think of what to ask of staff, or what steps to take… so this does it for them. This might be a surprise, but when a councillor is in the midst of a discussion, they follow seemingly good ideas easily.

Contact us if you are interested in getting a quote, $70 site visit, and $120 to run you through an analysis of water collection, storage and usage.

Grey-water

A topic that I love because it is not black and white.  Just recently Ian Ralston headed up a group of five, to write draft regulation/guidelines for greywater and composting toilets for the BC Ministry of Health (MOH).   Ian by far was the lead, with my role being  reading, editing and putting my two cents in here and there.    The outcome is a document currently under review by the MOH.   The basic gist is that greywater will be able to be designed by an ROWP rather than an engineer, and that a separate waste (septic) system will not be required if a proper system is designed and installed.  That said there are benefits to seasonal diversion into a septic or existing sewage system… and not to poo-poo the latter.    Different types of greywater will require different standards of dispersal, with guidelines on sizes of mulch basins, depth of discharge, mulch characteristics and depth of covering materials.    When the MOH toured through Eco-Sense as part of the project, I  was surprisingly impressed, and thoroughly enjoyed them and their questions.

Composting Toilets

Again part of the same document as noted above.    The down and dirty on this is the willingness of the BC Building and Safety Policy Branch to approve an intermediate “Alternate Solution” to allow composting toilets until the BC Building Code gets re-written and has notation of the CT and Water Closet being equivalent.    We covered a whole host of toilets and processing systems ranging from the simple to the complex, from batch composting to continuous, from pee-in to urine diversion, from mouldering to incinerating.  We covered the functions and objectives of the BC Building code, the qualifications for the person installing them, the safety aspects of composting on-site, and a lot more.    I previously had mis-judged other systems thinking one was better than another, but after this process have come to learn that each application is going to require a system that meets the needs of the site and the users.  There is not right or wrong system, but there is systems that deal with human excreta better in certain circumstances.  If I had to choose all over again… I would still have gone with the system we did… the humanure system.

What can you do to support any of these initiatives… you could follow through with the comment on rainwater harvesting and approach your council, and you could write to the Ministry of Health and state your support of greywater and composting toilets, and why you think they are important.  It’s really that simple.

Resources and Links

Rainwater Harvesting Practitioner for the Mid Island – Jamie Wallace of JAAN Designs  (Landscape design, and Project Management too)
Rain Water Harvesting and Pond supplies (pumps and filters) – VanIsle Water
Rainwater Landscaping, Keyline design for residential and farm – Hatchet & Seed
Regional District of Nanaimo Rain Water Harvesting Manual
